Dental X-ray

Product No.：K-045
Online Inquiry

Portable Dental X-ray Machine Rechargeable X Ray Device Dental Xray

Features for Portable Dental X-ray Machine:

1. High-Frequency Output: 70kV high-voltage output for sharp and clear imaging

2. Ultra-Lightweight Design: Weighs only 1.9kg which easy to handle with one hand

3. High-Capacity Battery: Equipped with a 2500mAh lithium battery for all-day performance

4. Portable & Cordless: Operates without cords – ideal for mobile or remote use

5. Low Radiation : Built-in shielding minimizes radiation exposure for safety

6. Wide Exposure Time Range: Adjustable exposure time from 0.04 to 2.0 seconds allows precise control based on tooth location, patient age, or tissue density, ensuring optimal image clarity without overexposure.

7. High Cost-Performance Ratio: Offers better flexibility and lower maintenance than traditional X-ray systems.

TECHNICAL SPECIFICATIONS:

Charger input	100 - 240V
Frequency	50/60Hz
Output	19V
Internal battery pack	10.8V, 2500mAh
Charging input	19V, 1.5A
Power resistance	≤2Ω
Ray type	X-ray
Beam limiting device diameter	60mm
Dose rate	2mGy/s
X-ray tube model	D-045
Target material	Tungsten
Target angle	12.5°
FOCUS	0.4mm
Tube voltage	70kV ±10%
Tube current	2mA ±20%
Loading time adjustment	0.04s–2.0s, deviation ±(10%+1ms)
Nominal electric power	0.14kW
Inherent filtration	1.0mmAl/70kV
Additional filtration	0.5mmAl/70kV
Total filtration	1.5mmAl/70kV
Half-value layer	≥1.6mmAl
Radiation leakage rate	≤0.25mGy/h (1m distance)
Total weight	1.9kg
Pipe assembly weight	approx. 1.1kg
Focus-skin distance	20.5cm ±0.5cm
Output radiation field	round, 6cm ±0.5cm
Control	Microprocessor control
Options	Children (small), Adult (big), Teeth types
Control method	Handheld switch with 3m spring cable; can be installed remotely

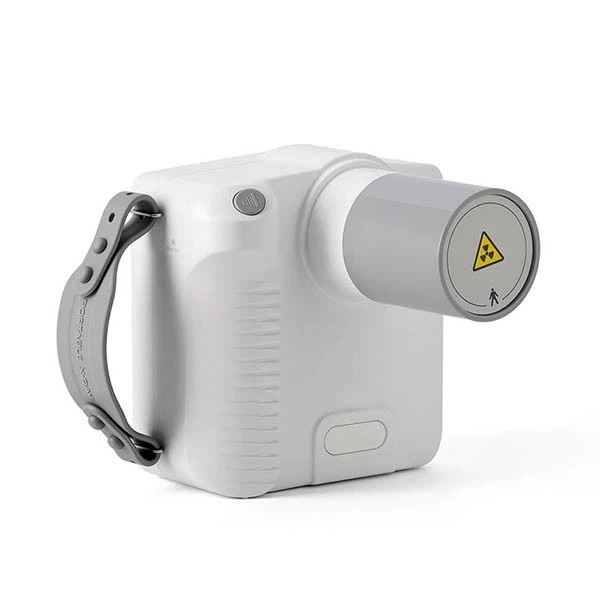

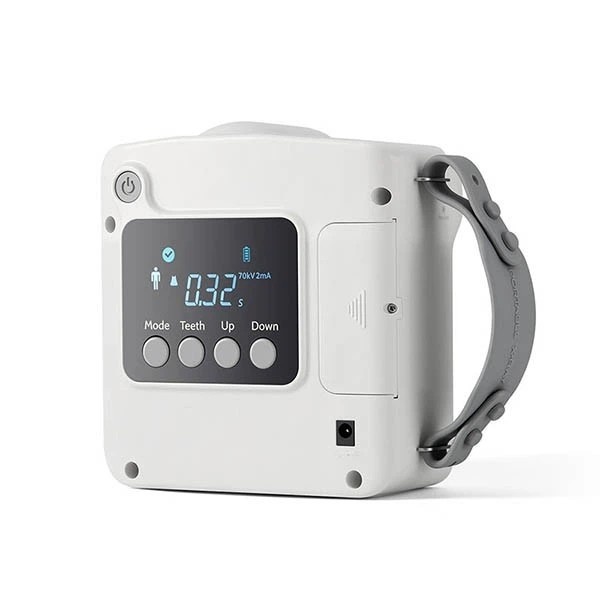

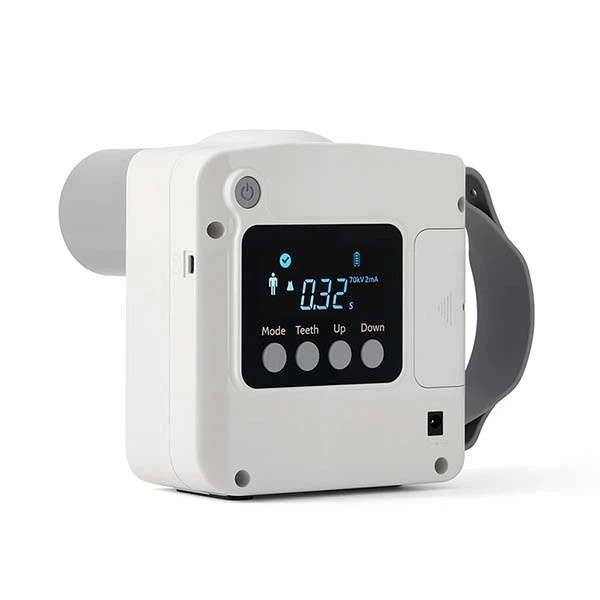

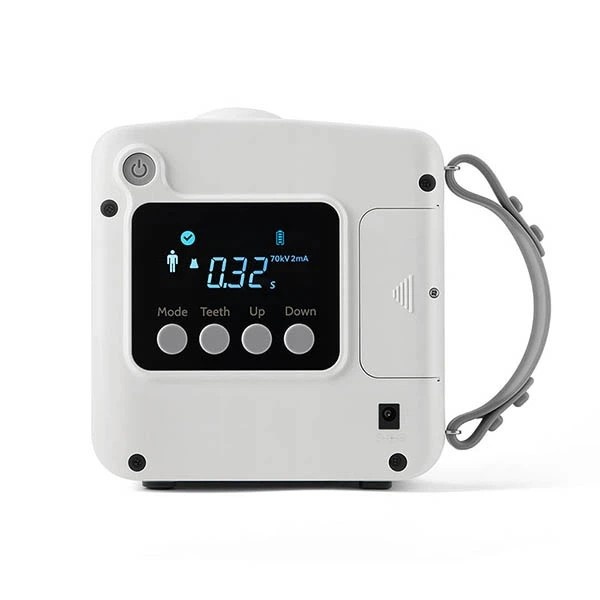

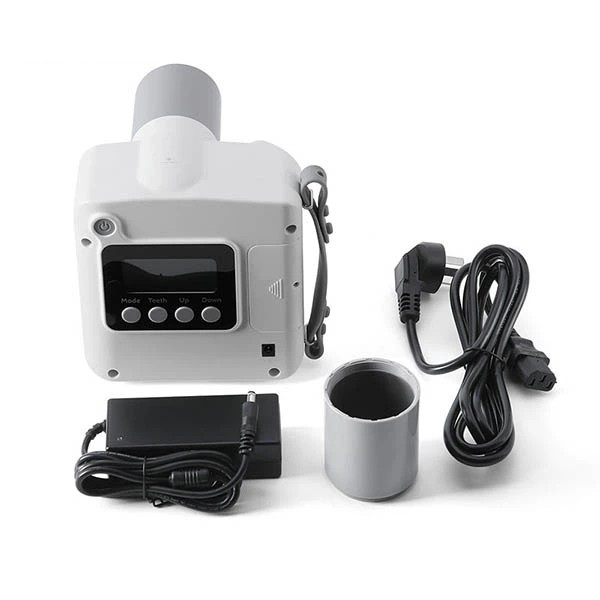

Product photos:

Packaging and shipping:

1. Mainly packed by carton or other common security package, you also can give us your special requirements about it.
We will try our best to make sure the goods arrive safely.
2. Delivery: About 5 days after order confirmed.
3. Freight: The freight cost will charge according to the weight of detailed order.
4. Shipment: Your goods could be shipped to you as your requirement such as by air or by sea, full way tracking for your cargos offered before the arrival of the goods.
